Overview
Essential details
- Warranty:
- 1 year
- Applicable Industries:
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, shredder, cement industry, Conveyor, Pellet mill
- Weight (KG):
- 55 KG
- Customized support:
- OEM, ODM
- Gearing Arrangement:
- Helical
- Output Torque:
- 105-27200nm
- Input Speed:
- 500~1800rpm
- Output Speed:
- 7~440 Rpm
- Place of Origin:
- Zhejiang, China
- Brand Name:
- EVERGEAR
- Heat treatment:
- 58-62 HRC
- Housing:
- Cast Iron, HT250/200
- Gear:
- 20CrMnTi, 40Cr
- Noise:
- 60-65Db
- Bearing:
- NSK, LYC, HRB, high quality in China
- oil sealing:
- NAK, high quality in China
- Input option:
- Solid shaft, IEC adaptor, motor
- Output option:
- Solid, hollow, splined shaft, shrink disk
- Certificate:
- CE, ISO9001
- Mounting position:
- Foot mounting, flange, shaft,
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H48f7577c766d441fb70650e0eeea6c0cc.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hd201694f34dd49688da4d3b00dd24d3cE.jpg)

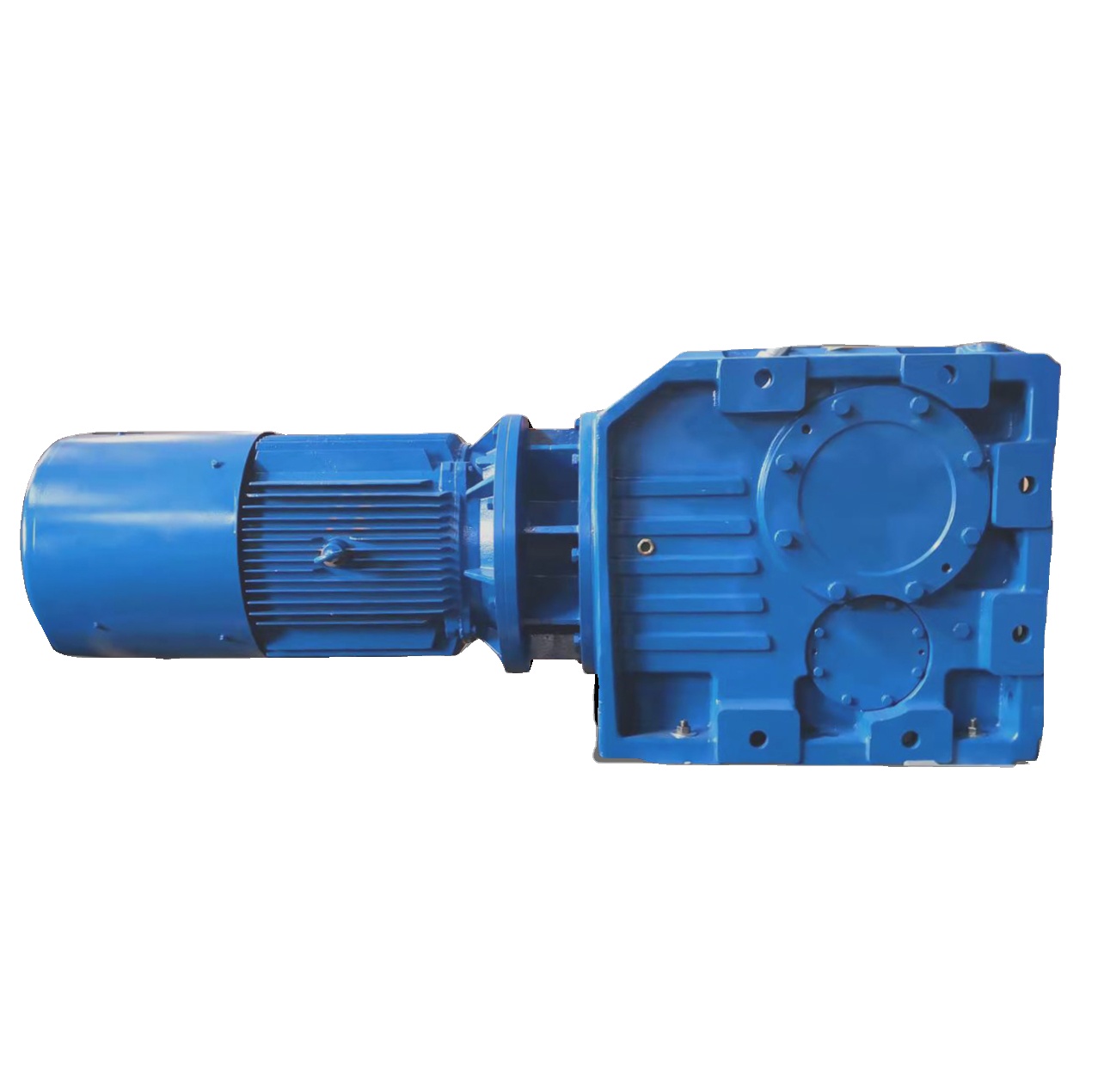

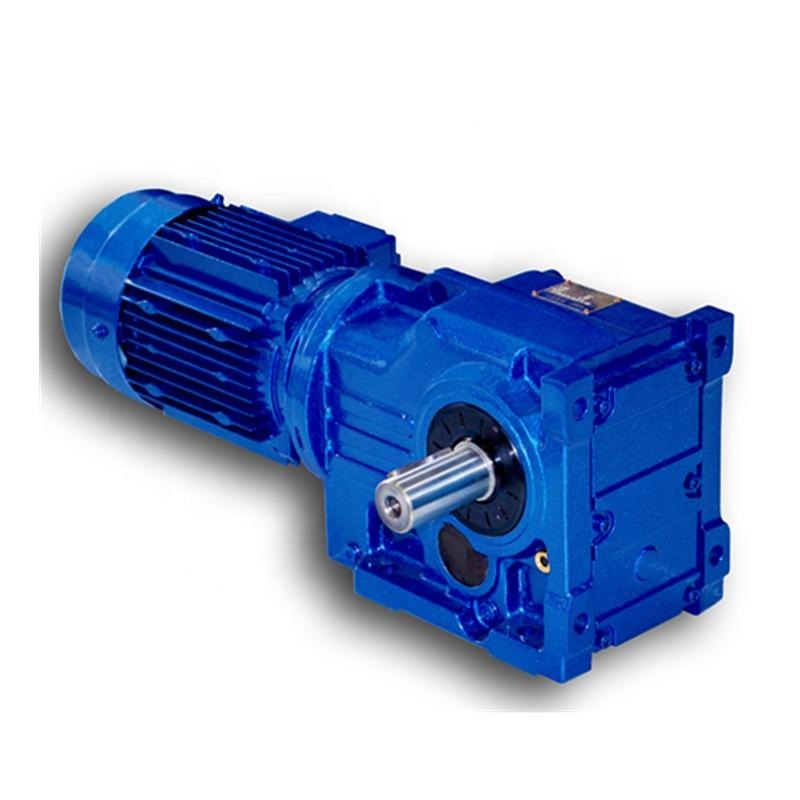

K reducer motor helical bevel gearbox reductor
Product Description
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Ha520920254044a70ab3c7ba84873292d6.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H94b8be8cd8864644890c664affed4585S.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H6df9c2895abf46e79ecf17f788398235F.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hc4b5c2eb7f2942db90a687b3eab31138Y.jpg)
K Series Right Angle Bevel Helical Gear Units | ||||||||
Sizes: 37/47/57/67/77/87/97/107/127/157/167/187 | ||||||||
Power P1 0.12...200kw | ||||||||
Output Torque TN2 Up to 50000Nm | ||||||||
Output Speed n2 0.13...276r/min |
Design of K Series
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Ha520920254044a70ab3c7ba84873292d6.jpg)
K .
Solid output shaft with foot mounting
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hadeabaf472434d1b976ed9b5ae2c7df45.jpg)
KF.
Solid output shaft with Flange mounting
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H8c7d703b44484ddf8ae5c19159d03215W.jpg)
KFA.
Hollow output shaft, B5 Flange-mounting
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hcef46a9d212b4864af4d44e16c0a9834h.jpg)
KAB.
Hollow output shaft with foot-mounting
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H88f03056fd304e74bde61aa065ad5277l.jpg)
KAZ.
Hollow output shaft with B14 flange mounting
Mounting Position of K Series
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H2cec1079ddb54afe97c0c27ff3dec807l.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hd201694f34dd49688da4d3b00dd24d3cE.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H6cb4720bd13c42beb34227fd4c26dd3ev.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hd201694f34dd49688da4d3b00dd24d3cE.jpg)
Glance at our FACTORY
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H7c0f1f2275a844d09902989bcc3f28ebo.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/UTB8DdjJfCbIXKJkSaefq6yasXXaZ.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H0c13ba604b224efba2af020805bd6328p.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/HTB1IpmuXli5K1Rjt_hNq6zUDVXaw.jpg)
Warehouse
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/HTB1nMSpXdzvK1RkSnfoq6zMwVXaE.jpg)
The Teams
The Whole Factory
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H406564d8aad5457395244f93cd938eaeO.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H986744d86bb244098921f8571016b8bcq.jpg)
Company Profile
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H57162fef0dde4189a5e6a20c77d8e696y.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H3b6b8596be8e4a2db77459c89178ecb3p.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/HTB1pmkNGpXXXXcaXXXXq6xXFXXXV.jpg)
Zhejiang Evergear Drive Co., Ltd. is a famous professional company which fous in research and development, manufacturing and sales services of reducer products, A natinal high-tech enterprise. The company's leading products are various to meet the needs of various industries.
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hd201694f34dd49688da4d3b00dd24d3cE.jpg)
Our Applications
EVERGEAR has been widely applied in many industies, including metallurgy, mining, chemical, beverage, printing and dyeing, hoisting and transport, constructing road etc .
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H0d3ef08b7fd943d5a08b521bb5650329b.png)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H1f48e8826dda43f08646e4fedd814620r.png)
Our Reference
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H0eb3e1bb4662423fb851ad7730bd22fbr.jpg)
Packing & Delivery
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H90d4e700c03543a390c6af3eaa66a253D.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H2bffdf2b1ff045fe8c54a6a6e4fe40778.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/H9dd424e1952f4d0f8abbf672b7597dc9I.jpg)
![](http://img8.grofrom.com/www.evergearmotor.com/evergeardriving/Hc93aa965e0224d76a80036affe975352W.jpg)
Packing Detail:Strong wooden case and Fuming certifaction for export
Delivery : 10-30 days
Delivery : 10-30 days
