Overview
Essential details
- Applicable Industries:
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Food & Beverage Shops, Other, greenhouse, pellet milling, conveyor, Pellet mills, shreeder
- Weight (KG):
- 100 KG
- Gearing Arrangement:
- Bevel / Miter
- Output Torque:
- 105-27200nm
- Input Speed:
- 500~1800rpm
- Output Speed:
- 7~440 Rpm
- Place of Origin:
- Zhejiang, China
- Brand Name:
- EVERGEAR
- Mounting Position:
- Foot Mounted,Flange Mounted,Shaft Mounted
- Housing Material:
- HT250 Cast Iron
- Voltage:
- 380-440V
- Colour:
- Red,Blue,Grey and Depend on Your Requirements
- Packaging:
- Wooden Case or Pallet
- output torque::
- 200-50000Nm
- Sample:
- Avalible sample of K series helical bevel gear reducer with IEC motor
- Delivery time:
- 20-25days
- Standard:
- ISO9001,CE,GB18001 etc
- Gears:
- Hardened Gears,helical gears and Bevel gears

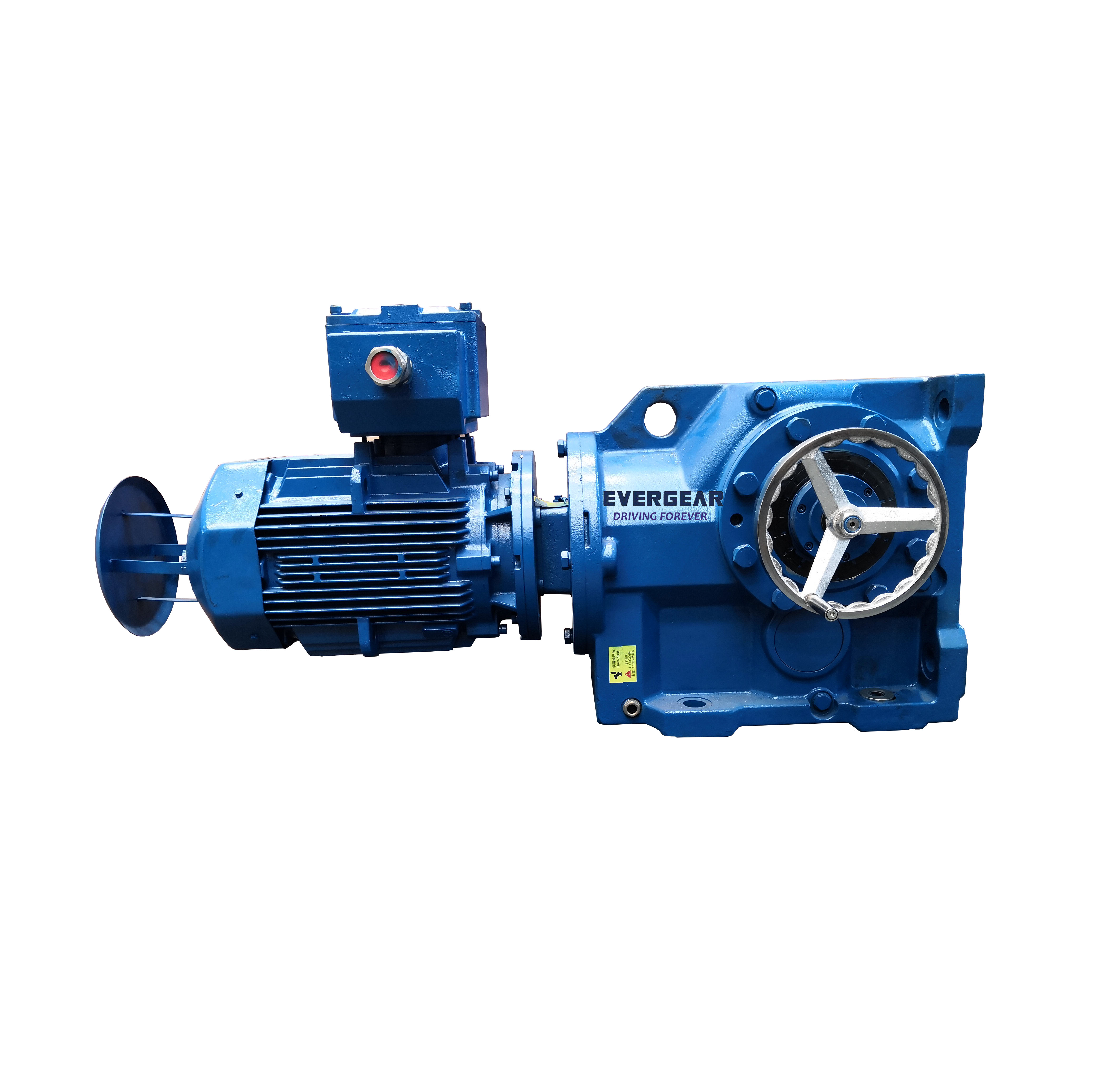

EVERGEAR DRIVE K series right angle caja reductora kba167 reduteurs de vitesse
Product Description
K Series Right Angle Bevel Helical Gear Units | ||||||||||||
SIZE | K37 | K47 | K57 | K67 | K77 | K87 | ||||||
CODE of Output Designations | K, KA,KH, KF, KAF, KHF, KAZ, KHZ, KAT, KHT, KAB, KHB | |||||||||||
Input Power(kw) | 0.12-3 | 0.12-3 | 0.12-4 | 0.18-5.5 | 0.37-11 | 0.75-22 | ||||||
Ratio | 3.73-106.93 | 4.52-119.63 | 5-147.88 | 5.2-150.15 | 7.58-210 | 7.21-194.56 | ||||||
Max. Torque(Nm) | 200 | 400 | 600 | 820 | 1550 | 2700 | ||||||
K97 | K107 | K127 | K157 | K167 | K187 | |||||||
K, KA,KH, KF, KAF, KHF, KAZ, KHZ, KAT, KHT, KAB, KHB | K, KA,KH | |||||||||||
1.1-30 | 3-45 | 7.5-90 | 11-200 | 11-200 | 18.5-200 | |||||||
7.13-185.35 | 7.49-149.06 | 8.68-152.25 | 12.66-150.41 | 17.34-164.5 | 17.18-179.86 | |||||||
4300 | 8000 | 13000 | 18000 | 32000 | 50000 | |||||||
TECHNICAL PERFORMANCE | ||||||||
Housing Hardness | HBS190-240 | |||||||
Gear Hardness | HRC58-62 | |||||||
Gear Grinding Precisions | 5-6 Grade | |||||||
Efficiency | 94-96% | |||||||
Noise | 60-70dB | |||||||
Temp. Rise | 40 | |||||||
Temp. Rise(Oil) | 50 | |||||||
Vibration | 20 | |||||||
Backlash | 20 Arcmin | |||||||
Lubricating Oil | GB L-CKC 220-460, SHELL OMALA 220-460 | |||||||
Bearing | TOP Chinese Brand: HRB/LYC/ZWZ, Etc. or Imported Brand: NSK,SKF, FAG as requested | |||||||
Oil sealing | NAK(Taiwan Brand), or other brand requested | |||||||
Design of K Series
K .

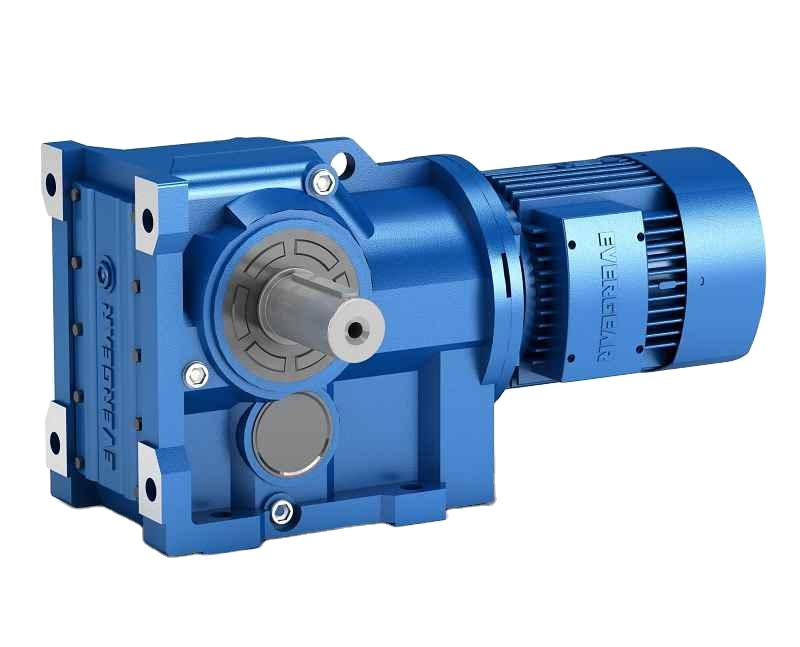

Solid output shaft with foot mounting
KF.
Solid output shaft with Flange mounting
KFA.
Hollow output shaft, B5 Flange-mounting
KAB.
Hollow output shaft with foot-mounting
KAZ.
Hollow output shaft with B14 flange mounting
Mounting Position of K Series
The Whole Factory
Warehouse
The Teams
Company Profile
Zhejiang Evergear Drive Co., Ltd. is a famous professional company which fous in research and development, manufacturing and sales services of reducer products, A natinal high-tech enterprise. The company's leading products are various to meet the needs of various industries.
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
Our Applications
EVERGEAR has been widely applied in many industies, including metallurgy, mining, chemical, beverage, printing and dyeing, hoisting and transport, constructing road etc .
Our Reference
Packing & Delivery
Packing Detail:Strong wooden case and Fuming certifaction for export
Delivery : 10-30 days
Delivery : 10-30 days
