Overview
Essential details
- Warranty:
- 1 year
- Place of Origin:
- Zhejiang, China
- Brand Name:
- EVERGEAR
- Model Number:
- S/SA/SAF 37/4//57/87/97
- Type:
- GEAR MOTOR
- Frequency:
- 50/60Hz
- Phase:
- Three-phase
- Protect Feature:
- IP 54/55/56//66
- AC Voltage:
- 220/380/415/440V
- Efficiency:
- IE 1
- Application:
- Food&Beverage, Conveyor, Lifting,Farms,Mining, Construction, Chemical
- Housing:
- HT250/200
- Gear material:
- 20CrMnTi, 40Cr
- Noise:
- 80-90DB
- Mounting Position:
- Foot or Flange or shaft mounting
- Motor connection:
- Directly or IEC flange
- Sample:
- Available
- Output speed:
- 0.3-150RPM
- Heat treatment:
- Yes
- Output torque:
- upto 4000Nm
EVERGEAR R/S/F/R Modular 220v/380V 0.18 0.37 kw parallel shaft gear reduction motor for agitator conveyor mixer
F Series Parallel Shaft Gear Reducer | ||||||||||||
SIZE | 37 | 47 | 57 | 67 | 77 | 87 | ||||||
CODE of Output Designations | F, FA, FF, FAF, FAZ, FAB, FAH, FHF, FHZ, FHB | |||||||||||
INPUT POWER (kw) | 0.12-3 | 0.12-3 | 0.12-5.5 | 0.12-5.5 | 0.18-5.5 | 0.37-11 | ||||||
RATIO | 84-128.51 | 4.67-179.53 | 4.75-199.7 | 3.94-229.1 | 3.75-281.71 | 3.7-273.43 | ||||||
MAX. Torque(Nm) | 200 | 380 | 600 | 820 | 1500 | 3000 | ||||||
97 | 107 | 127 | 157 | 167 | ||||
F, FA, FF, FAF, FAZ, FAB, FAH, FHF, FHZ, FHB | ||||||||
1.1-30 | 2.2-45 | 7.5-90 | 11-200 | 11-200 | ||||
3.8-276.99 | 4.91-251.75 | 4.99-174.86 | 11.92-267.43 | 7.41-183.18 | ||||
4300 | 7840 | 12000 | 18000 | 32000 | ||||
TECHNICAL PERFORMANCE | ||||||||
Housing Hardness | HBS190-240 | |||||||
Surface Hardness of Gears | HRC58°-62° | |||||||
Hardness of Gear Core | HRC33°-40° | |||||||
Hardness of Input/Output Shaft | HRC25°-30° | |||||||
Noise | 60-68dB | |||||||
Efficiency | 94-96% | |||||||
Temperature Rise | Max. 40℃ | |||||||
Temperature Rise for Oil | Max. 50℃ | |||||||
Vibration | ≦20μm | |||||||
Backlash | ≦20 Arcmin | |||||||
Precision of Gear Grinding | 6-5 Grade | |||||||
Brand of Bearing | TOP quality brand in China: HRB/LYC/ZWZ/C&U/etc.; or Imported Brand as Requested | |||||||
Brand of Oil Sealing | NAK(Taiwan brand) or other brands | |||||||
Design of F Series
F .
Solid output shaft with foot mounting
FAZ.
Hollow output shaft with B14 Flange mounting

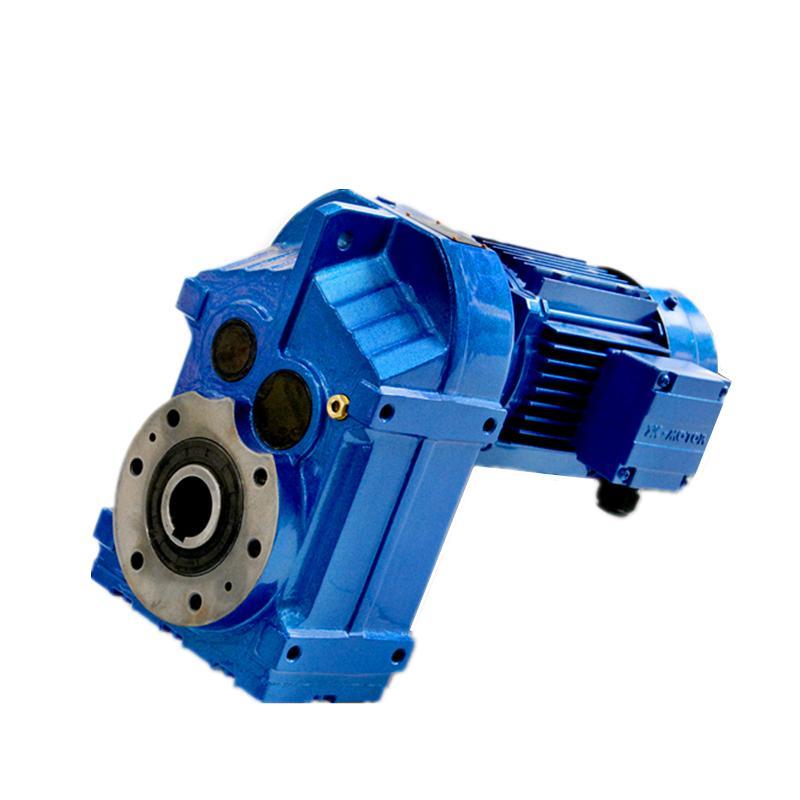

FAF.
Hollow output shaft with B5 flange mounting

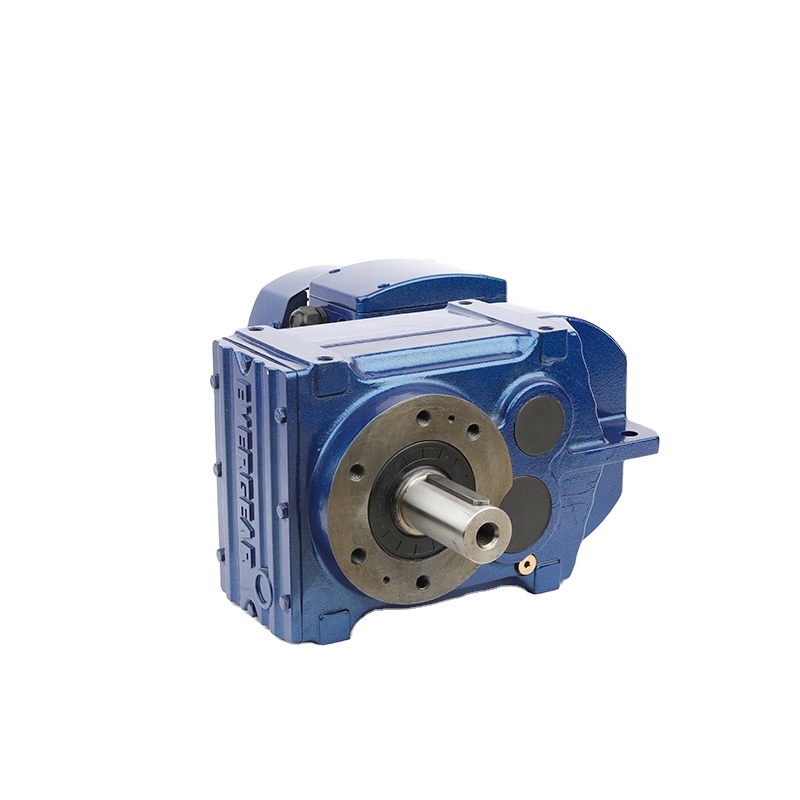

FF.
Solid output shaft with B5 flange mounting
Mounting Position of F Series
The Whole Factory
Warehouse
The Teams
Company Profile
Zhejiang Evergear Drive Co., Ltd. is a famous professional company which fous in research and development, manufacturing and sales services of reducer products, A natinal high-tech enterprise. The company's leading products are various to meet the needs of various industries.
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. "EVERGEAR" is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears ", we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .
Our Applications
EVERGEAR has been widely applied in many industies, including metallurgy, mining, chemical, beverage, printing and dyeing, hoisting and transport, constructing road etc .
Our Reference
Packing & Delivery
Packing Detail:Strong wooden case and Fuming certifaction for export
Delivery : 10-30 days
Delivery : 10-30 days
FAQ
Q: Are you trading company or manufacturer ?
Q: How can I get the details of EVERGEAR Drive products?
Q: What is the normal production time of orders?
A: We are factory. Our factory is located in Pingyang county Wenzhou city of Zhejiang province China
Pls leave us a message at inquiry form of our website : www.evergeardriving.com
Pls leave us a message at inquiry form of our website : www.evergeardriving.com
Q: How can I get the details of EVERGEAR Drive products?
A: For EVERGEAR Drive products catalog, user manuals etc, you can download from our website or contact our representative. You could also check the details at products center on our website.
Q: What is the normal production time of orders?
A: Normally for small order of less than 10 sets, it will take 7-15 days, and some and we have some parts in stock, it's according to different type products. The production time of the order more than 10sets is depending on the ordered quantity.
Q: What's the payment term?
A: 30% T/T in advance ,balance before shippment.
Q: What's the Minimum Order Quantity (MOQ)?
A: No MOQ requirement, you could order 1 or 2 sets samples for test at beginning.
