- Place of Origin:
- Zhejiang, China
- Brand Name:
- EVERGEAR
- Model Number:

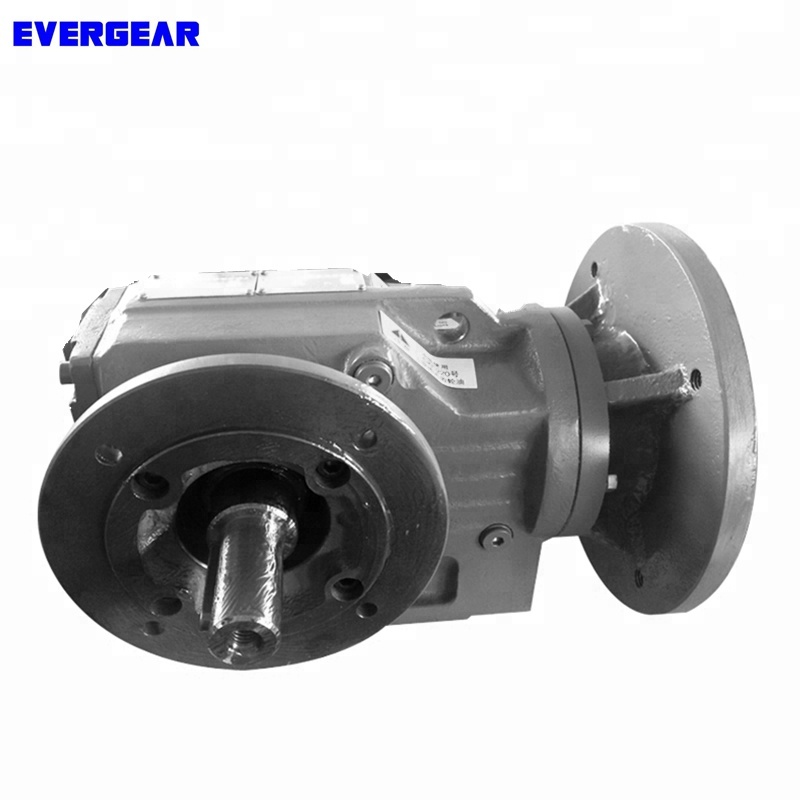

- K series Bevel Gear
- Gearing Arrangement:
- Bevel / Miter
- Output Torque:
- 105-27200nm
- Rated Power:
- 0.37-200 (Kw)
- Input Speed:
- 500~1800rpm
- Output Speed:
- 7~440 Rpm
- Mounting Position::
- Foot Mounted,Flange Mounted,Shaft Mounted
- Housing Material:
- HT250 Cast Iron
- Voltage:
- 380-440V
- Colour:
- Red,Blue,Grey and Depend on Your Requirements
- Packaging:
- Wooden Case or Pallet
- Nameplate:
- Any nameplate your need
- Sample:
- Avalible
- Delivery time:
- 20-25days
- Standard:
- ISO9001,CE,GB18001 etc
- Guarantee period:
- 18 months
1. Size:27,37,47,57,67,77,87,97,107,137,147,167
2. Power range:0.18KW-200KW
Ratio: 3.4– 280.6Output Speed:0.11-440rpm
Output torque: 105-27200nm
Input speed:750rpm,1000rpm,1500rpm,1800rpm.
Output shaft diameter:25mm-120mm
Reduction stage: two stages, three stages,
Mounting way: foot mounted, shaft mounted, flange mounted
Output way: Solid shaft
Weight:6.2KGS-770KGS
Ambient temperature:-15.00 [°C] ~ +50 [°C]
Direction of rotation of gear output shaft: CW rotation or CCW
Corrosion protection: Conservation acc. to Norm
Coating system: Standard coating, finishing coat, for all climatic zones
Color: Blue or any color you need
3. Advantages:
•Modular design system Multi-purpose use of the housing and internal components.•Progressive ratio of sizes for optimum selection of sizes.
High quality
Passed the ISO9001:2008 quality system authentication
Application Service
We'll help you find an affordable, high quality, and energy efficient gear drive solution that best suits your application in industry
Online Service
24/7 service(whatsApp/skype/Email/Phone Call)
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Packing,waterproof,Strong wooden case,Fuming certifaction
Delivery Details : 3-40 days by air or ship(depends on destination)
ISO9001:2008 / CE / ISO18001 / One famous of Chinese Gear Reducer Brand
Reliable Gear Drive Supplier
*High quality products
*CE,ISO9001:2008,ISO18001 quality control system
*12 months industry's best warranty
*Factory price
*24/7 service
Customer's Brands
Customer's Brands
Q: Are you trading company or manufacturer ?
A: We are factory.Our factory is located in Pingyang county Wenzhou city of Zhejiang province China
Q: How long is your delivery time?
A: Generally it is 20-30 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample and freight cost.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Welcome to contact me for any more needs or questions by 24*7hours!
Contact person:Ms.Zember Liu (Skype:zemberliu) Mobil:+86 139 6777 5116(What'sAPP)
