- Gearing Arrangement:
- Planetary
- Output Torque:
- Up to 18000N. M
- Rated Power:
- 0.18-0.75kW
- Input Speed:
- 750-1800rpm
- Output Speed:
- 1-950 rpm
- Place of Origin:
- China
- Model Number:
- MB
- Brand Name:
- EVERGEAR
- Model:
- MB basic type/one stage variator/two stage variator/ceramics
- mounting way:
- horizontal mount/vertical flange mount/ special position mount
- Handwheel position:
- Left /Right
- HS code:
- 8483409000
- Motor Votaloge:
- 220v/ 380v / 440v
- Motor HZ:
- 50HZ /60HZ
- Sample:
- Available of MB series variable reducer
- packing:
- strong wooden case and pallet
- Color:
- blue/ silver
- Standard:
- ISO9001:2008/CE/GB18001

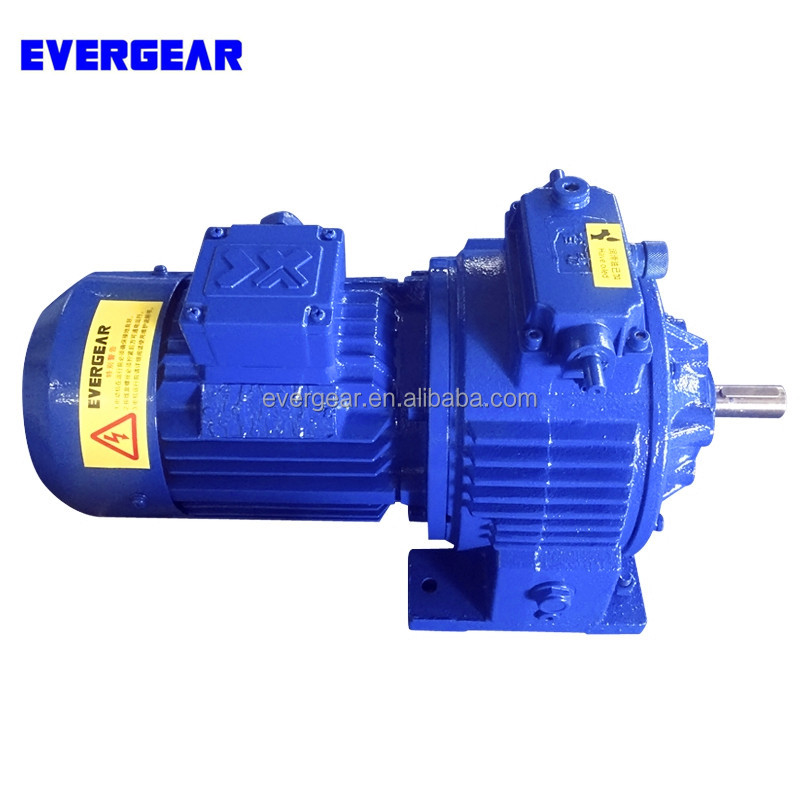

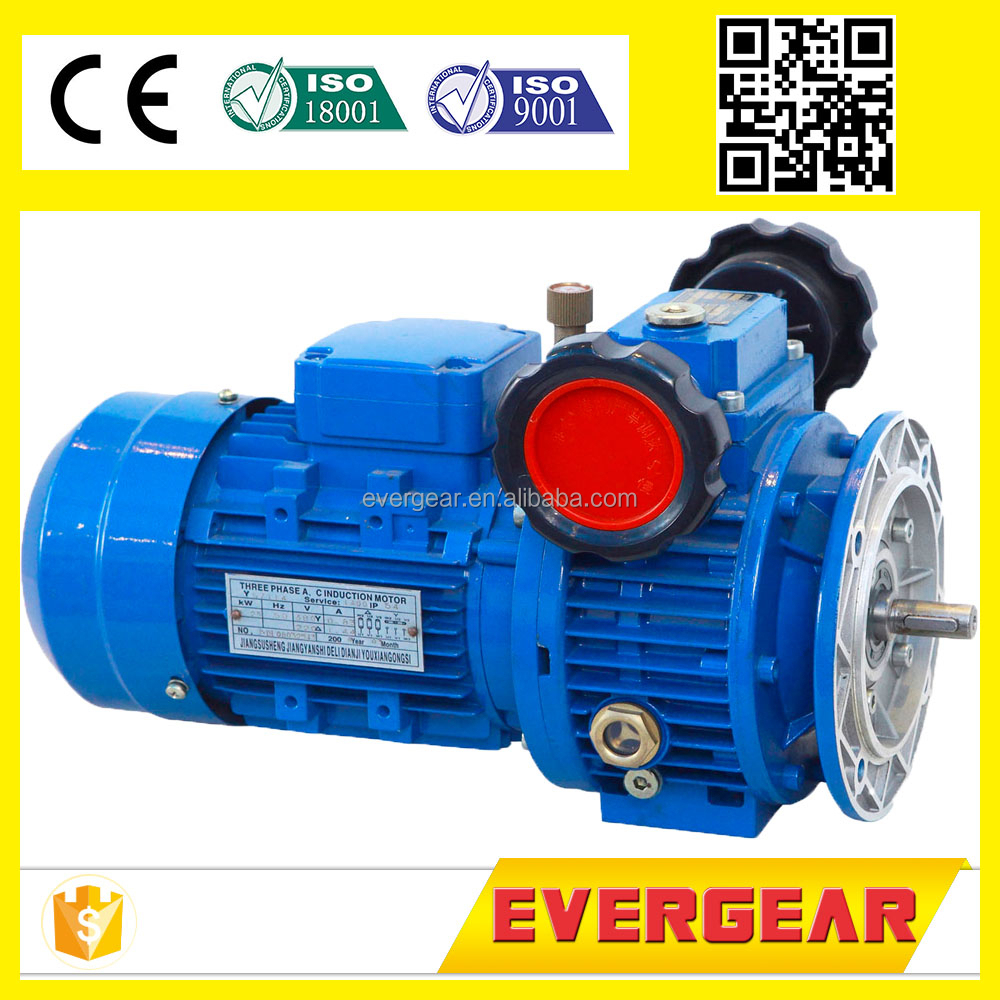

MB series variator,variable speed gearbox,mechanical speed variator
MB Variator with even stree,high governing sensitity and excellent durability,it is capable in structure and easy to operate.
Hight strength,wide range of speed change,high precision,reliable performance,variable combination etc characteristics.
MB SERIES VARIATOR MODEL SELECTION TABLE(EVERGEAR DRIVE) | |||||||||||||
Base NO. | 1 | 2 | 3 | 4 | 5 | 6 | |||||||
Input Power: | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | |
Variator model | Output Speed | Output Torque Allowed | |||||||||||
Basic Model | 190-950 | -- | 3.5-1.8 | 5.1-2.7 | 8_4 | 11-5.4 | 15.3-8 | 21--11 | 30.6-16 | 42-22 | 59-29 | 77-40 | 105-54 |
190-760 | 2.5-1.6 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
Single Stage | 100-500 | -- | 6.5-3.4 | 9.5-5 | 14.2-7.4 | 20_10 | 29.2-1.5 | 40-20 | 58-30 | 80-40 | 104-54 | 143-74 | 200-101 |
80-400 | -- | 8-4.2 | 12.3-6.2 | 17.5-9.3 | 25-12.5 | 37-18.5 | 50-25 | 71-37 | 100-50.5 | 130-67 | 180-93 | 245-126 | |
60-300 | -- | 11-6.5 | 15.8-8.3 | 24.5-13 | 33.2-16.8 | 50-21.7 | 65-34 | 98-50 | 134-67.5 | 173-90 | 240-124 | 330-168 | |
40-200 | -- | 16-8.4 | 24-12.5 | 35.4-18.5 | 50-25 | 73-37 | 100-50.5 | 147-74 | 200-101 | 256-135 | 380-190 | 490-253 | |
Two-Stage | 30-150 | -- | -- | -- | -- | -- | -- | -- | 186-100 | 267-132 | 356-176 | 490-242 | 668-330 |
28-140 | -- | -- | -- | 52-26 | 70-35.4 | 105-52 | 143-71 | -- | -- | -- | -- | -- | |
25-125 | -- | 25-13 | 39-20 | -- | -- | -- | -- | -- | -- | -- | -- | -- | |
20-100 | -- | -- | -- | -- | -- | -- | -- | 294-145 | 401-198 | 535-264 | 735-363 | 1002-495 | |
18-90 | -- | -- | -- | 81-40 | 100-55 | -- | -- | -- | -- | -- | -- | -- | |
15-75 | -- | 42-22 | 65-32.6 | -- | -- | 196-97 | 255-132 | -- | -- | -- | -- | -- | |
13-65 | -- | -- | -- | 113-76 | 150-76 | -- | -- | -- | -- | -- | -- | -- | |
9-45 | -- | 65-37 | 105-54 | -- | 230-140 | -- | -- | -- | -- | -- | -- | -- | |
8-40 | -- | -- | -- | 182-91 | 250-124 | -- | -- | -- | -- | -- | -- | -- | |
6.5-32.5 | -- | -- | -- | 225-112 | 300-152 | -- | -- | -- | -- | -- | -- | -- | |
Three-Stage | 4.7-23.5 | -- | 138-69 | 204-102 | 292-150 | 426-207 | 603-303 | 795-413 | -- | -- | -- | -- | -- |
2_10 | -- | 238-96 | 258-141 | 426-356 | 426 | 787-420 | 795-429 | -- | -- | -- | -- | -- | |
